CKJC0806HDA(Narrow Body) CKJC0806HD CKJC1008HDA(Narrow Body) CKCJ1008HD CKCJ1210HD CKCJ1412HD CKCJ1614HD Hydraulic Self-propelled Scissor Lift Aerial Work Platform

Application Scenarios and Scope of Application: Engineering Decoration

The hydraulically driven self-propelled scissor-type aerial work platform uses a hydraulic system as its core power source, which is safer and more reliable than pure electric or mechanical transmission methods. The hydraulic system can provide a smooth, stepless speed-adjustable power output to ensure stability during lifting and walking, reduce shaking, and improve the safety of aerial work; the hydraulic drive has an automatic overload protection function, which can effectively avoid equipment damage or accidents under overload conditions. The hydraulic components have a sturdy structure and are impact-resistant, suitable for high loads and long-term continuous operations, especially suitable for complex outdoor working conditions (such as construction sites, mines, etc.), and can still maintain reliable operation in harsh environments such as extreme temperatures, dust, and humidity. Combined with advanced hydraulic buffer technology and intelligent control valve groups, the operating accuracy and safety of the equipment are further improved.

CKJC1008HDA, KJC0806HD
Standard Configuration:
● Fully proportional handle control
● Platform self-locking door
● Extended platform
● Full height walking
● Solid seamless tires
● Two-wheel drive
● Two-wheel steering
● Automatic braking system
● Emergency descent system
● Oil pipe explosion-proof system
● Fault diagnosis system
● Tilt alarm
● Action beep
● Horn
● On-board diagnostic system with battery level indicator
● Safety maintenance support rod
● Standard transport forklift hole
● Charging protection system
● Flashing lights
● Folding fence
● Automatic pit protection
● Charging indicator light
● Tether connection point
● Fixed and lifting points
● Emergency stop button

Optional Configuration:
● Platform overload restriction
● Platform work light
● Narrow basket for ceiling grid entry
● Pipeline carrying kit
● Toolbox
● Foam buffer kit
● Ground to platform AC power supply

Safety:
● Compliant with ANSI and OSHA. Equipped with the CE mark and complying with applicable European regulations, including the Machinery Directive using the EN280 design standard.

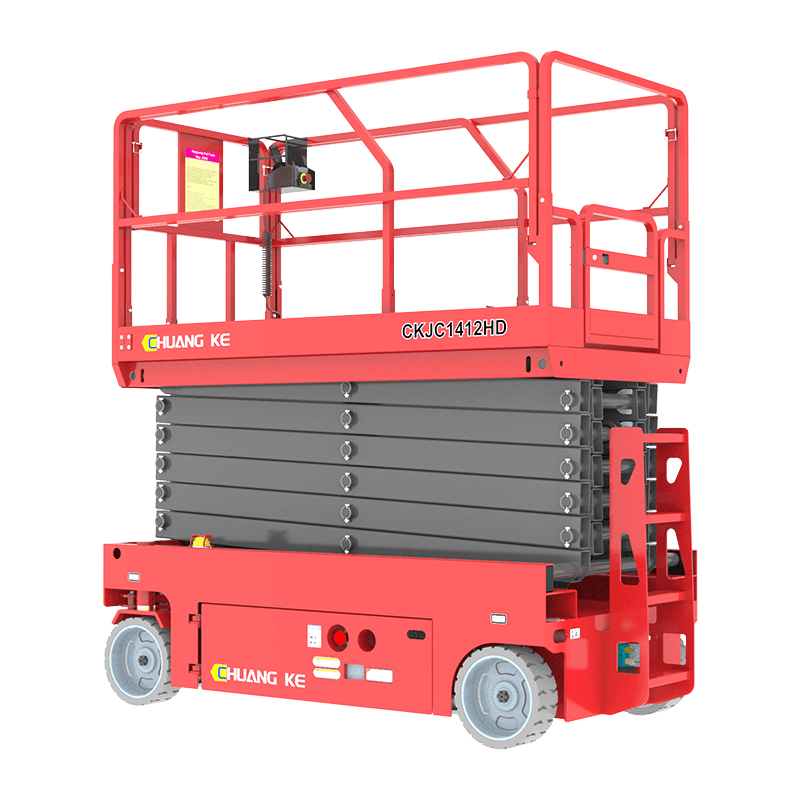

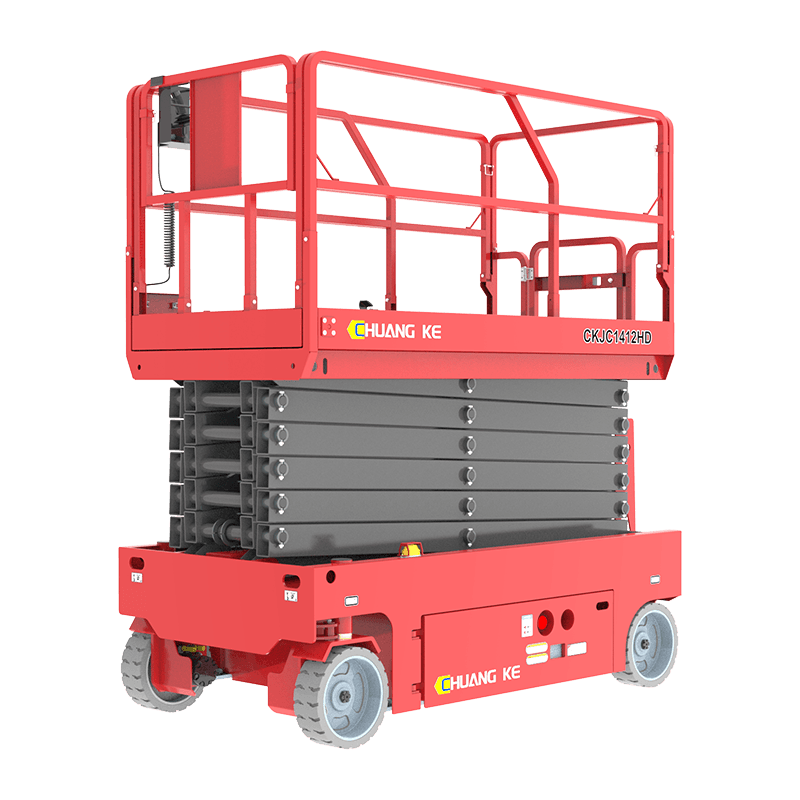

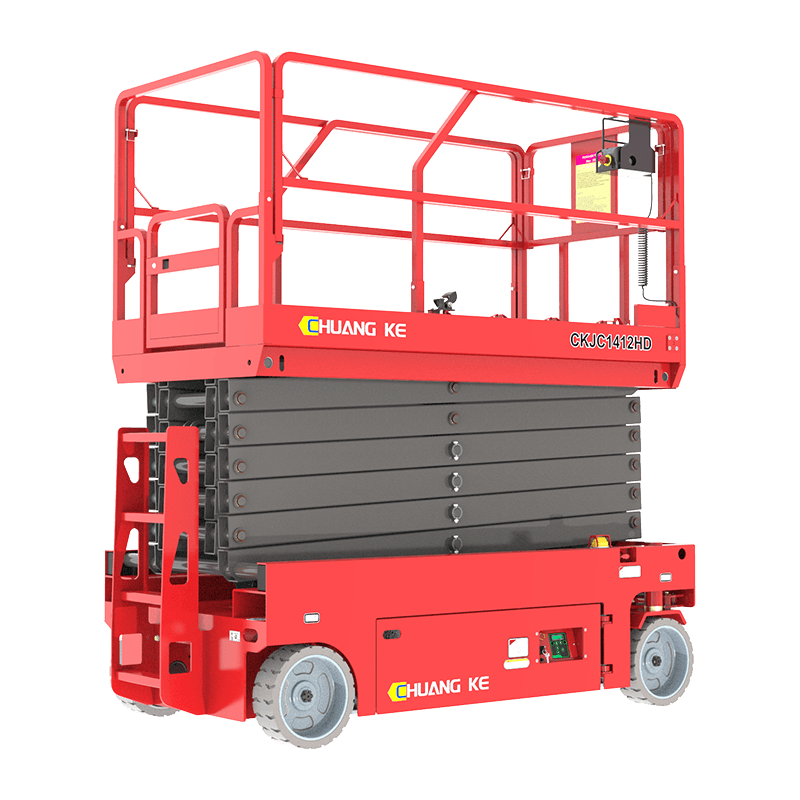

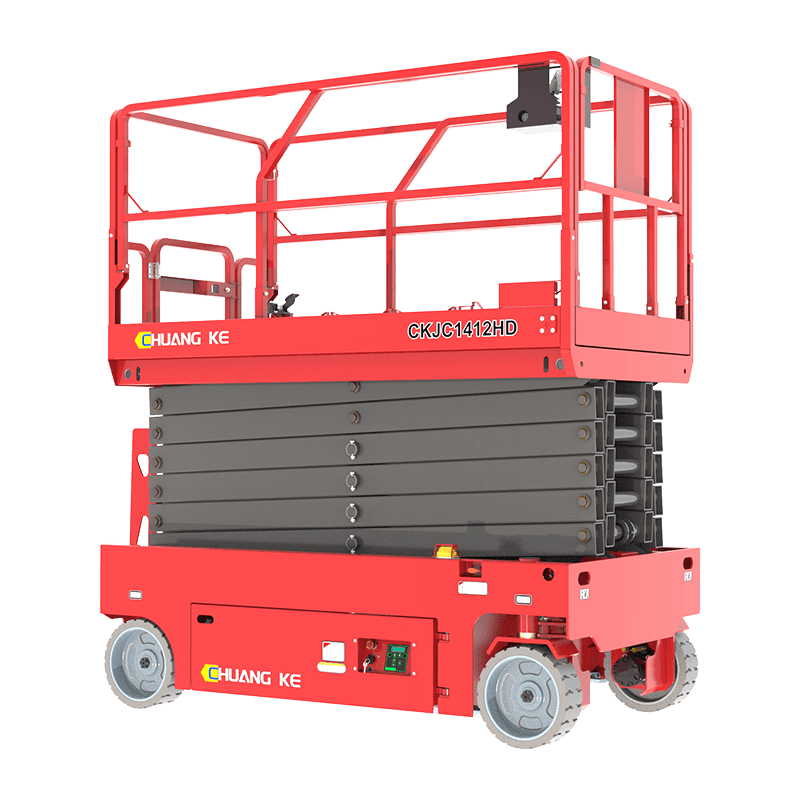

CKJC1412HD, CKJC1210HD, CKJC1008HD

Option:
● Fully proportional handle control
● Platform self-locking door
● Extended platform
● Full height walking
● Solid seamless tires
● Two-wheel drive
● Two-wheel steering
● Automatic braking system
● Emergency descent system
● Oil pipe explosion-proof system
● Fault diagnosis system
● Tilt alarm
● Action beep
● Speaker
● On-board diagnostic system with battery level indicator
● Safety maintenance support rod
● Standard transport forklift hole
● Charging protection system
● Strobe light
● Folding fence
● Automatic pit protection
● Charging indicator light
● Tether connection point
● Fixed and lifting points
● Emergency stop button

Optional Configuration:
● Platform load sensing system
● Communication power supply to the platform
● Lithium-ion battery
● Pneumatic pipeline leading to the platform
● Support customization

Safety:
● Compliant with ANSI and OSHA. Equipped with the CE mark and complying with applicable European regulations, including the Machinery Directive using the EN280 design standard.
