Application Scenarios and Scope of Application: Warehouses and Logistics
1. Low-noise electric drive system Pure electric power: Powered by high-efficiency lithium batteries or lead-acid batteries, there is no internal combustion engine noise and exhaust emissions during operation, and the noise value is usually less than 60 decibels (equivalent to the level of ordinary conversation), which is perfectly suitable for places with high requirements for quietness such as libraries, hospitals, and office buildings.
2. Extremely flexible and omnidirectional mobility brought by the universal wheel design: Equipped with high-performance universal wheels (some models with brake locks), it can achieve 360° in-situ turning, side shifting and diagonal walking, and flexibly shuttle between narrow aisles or dense shelves with a very small turning radius. Adaptive floor: Universal wheels are usually made of wear-resistant and silent materials such as polyurethane, which can not only protect the floor (such as epoxy floor, ceramic tile), but also pass smoothly on slightly uneven ground.
3. Stability and safety of scissor-type structure Low vibration lifting: The scissor-type mechanical structure is combined with an electro-hydraulic or pure electric push rod system, and the lifting process is smooth and impact-free, ensuring the comfort of operators and the accuracy of precision operations (such as lighting installation, monitoring and debugging). Safety protection: standard anti-pinch guard, emergency stop button, tilt alarm and automatic leveling function; some models can be equipped with anti-collision sensor or double guardrail design.
4. Targeted optimization for indoor scenes. Compact body: the platform width can be as narrow as 0.8 meters, suitable for standard door frame entry and exit; the height after folding is usually less than 2 meters, which is convenient for elevator transportation or indoor storage. Humanized operation: wireless remote control or built-in control panel of the platform simplifies operation, and some models support stepless speed regulation to adapt to users of different proficiency. Clean operation: no risk of oil leakage to avoid contamination of indoor environment (such as food workshop, electronic dust-free workshop).

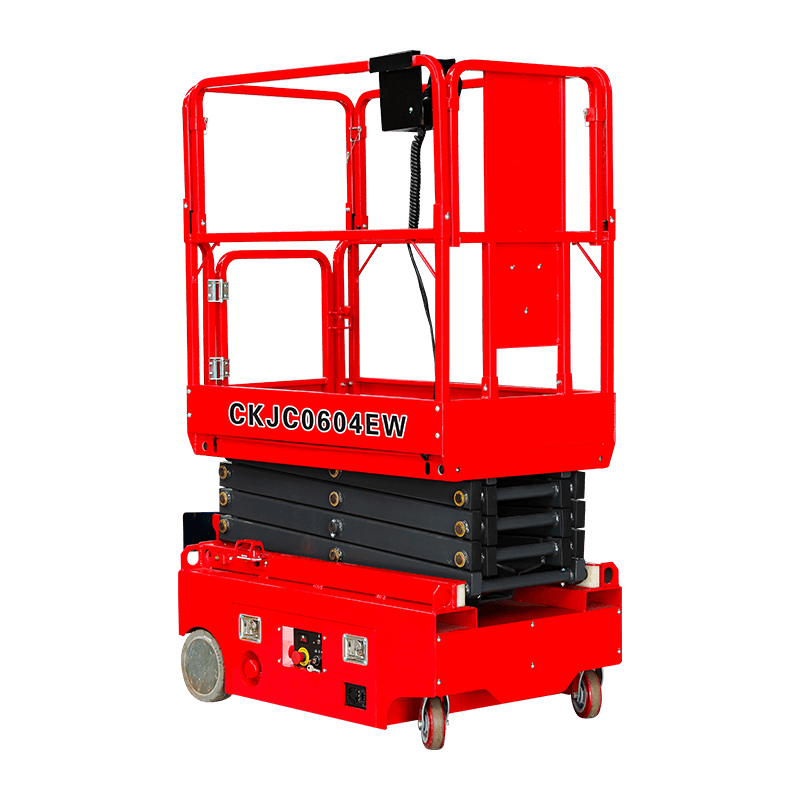

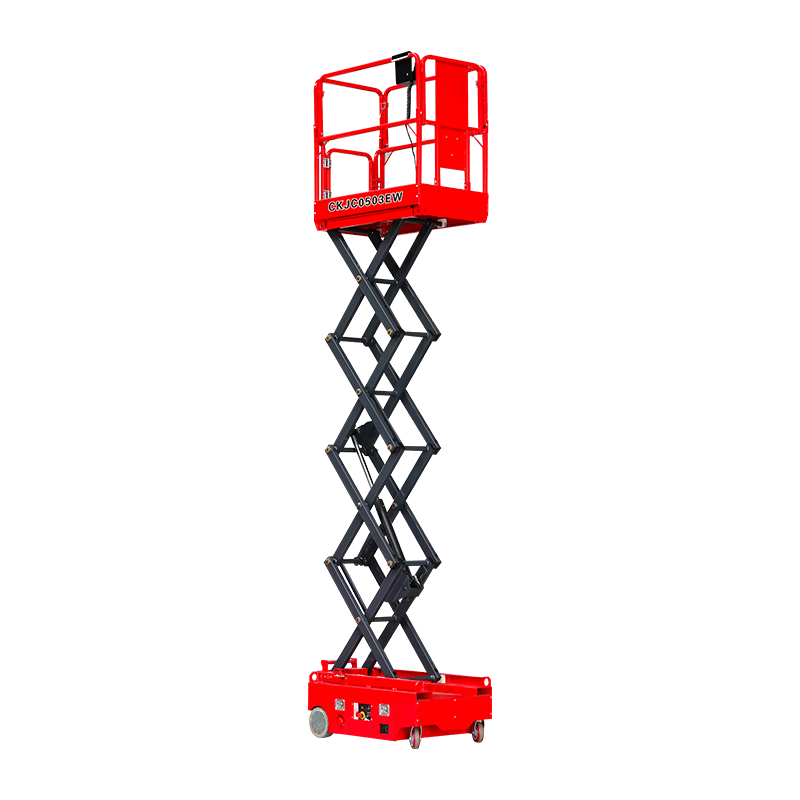

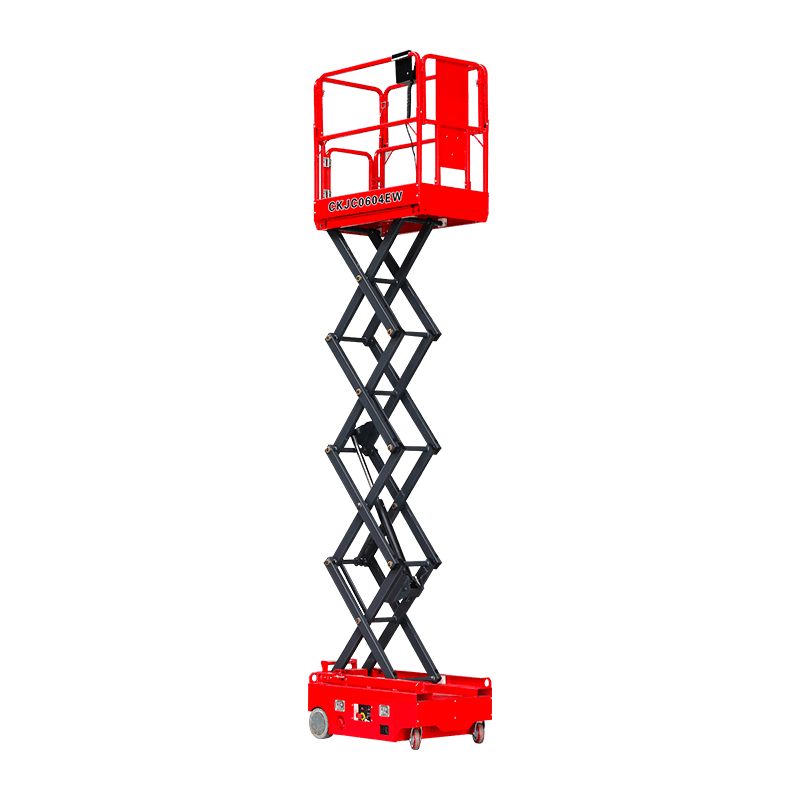

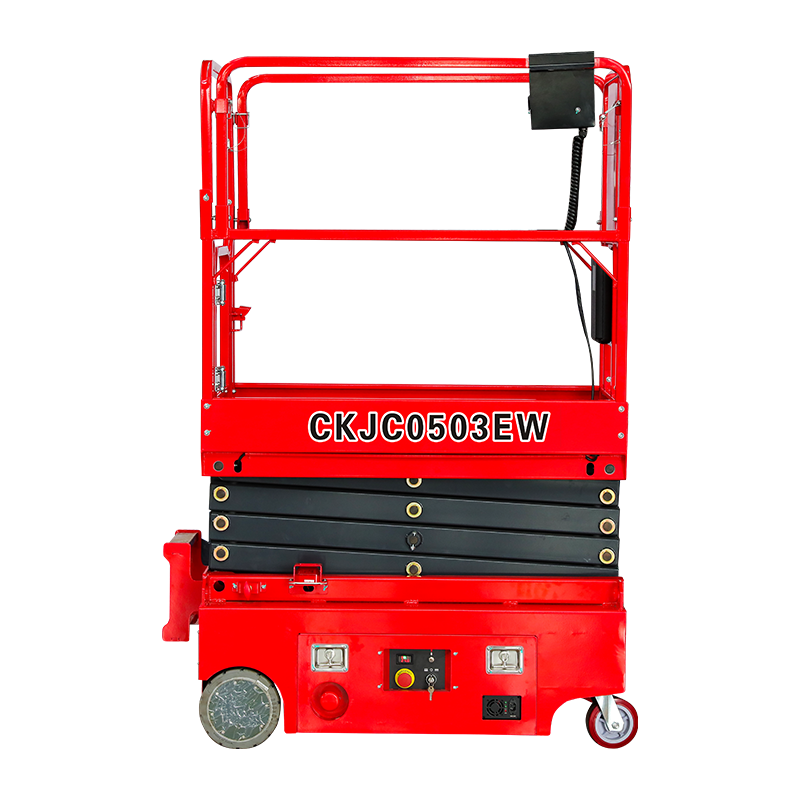

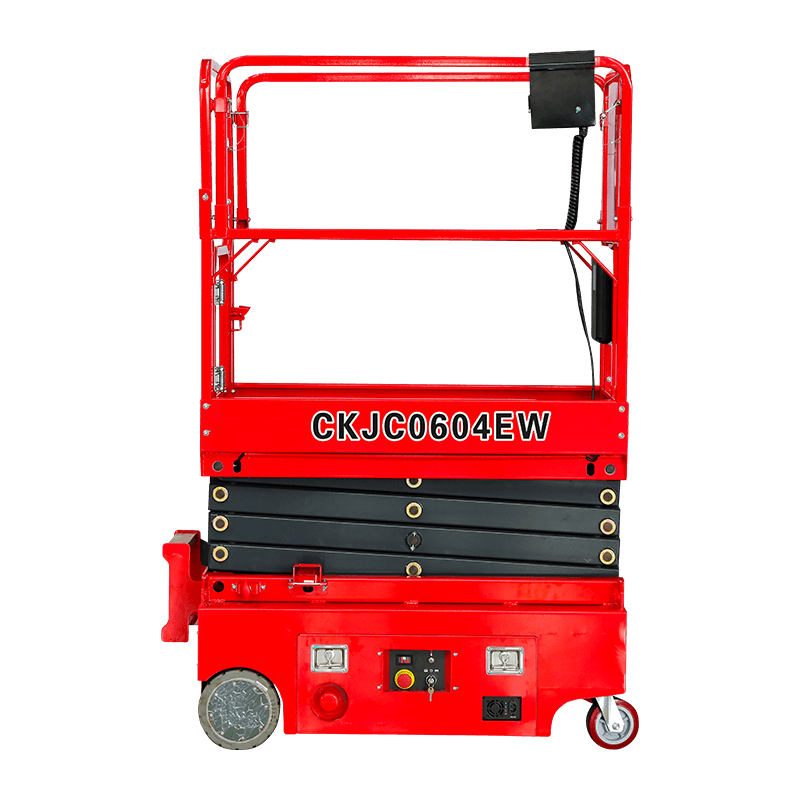

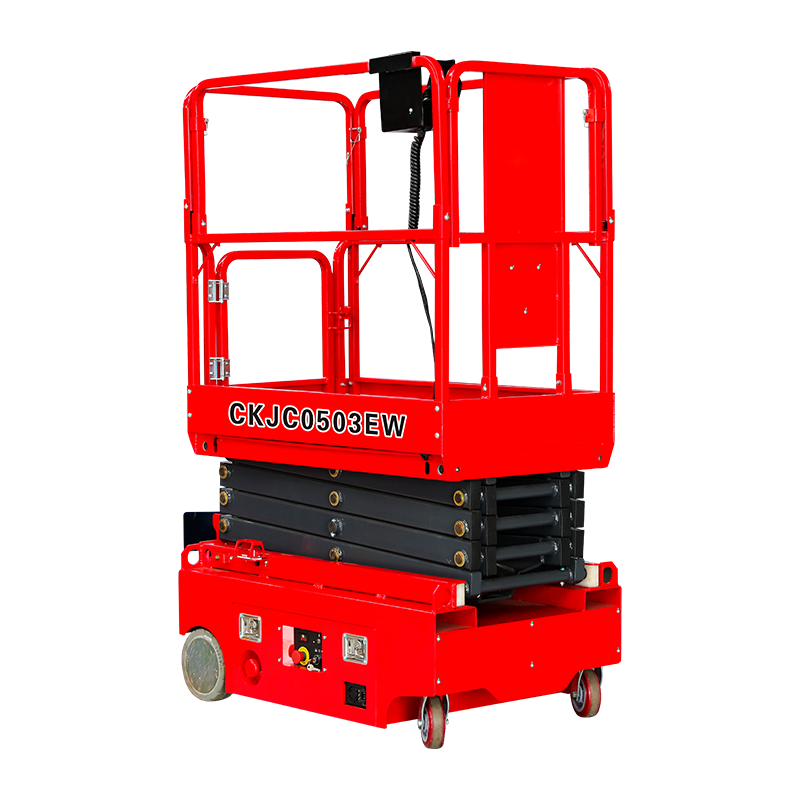

Characteristic:
● Platform height 3.0 m/3.9m, working height 5.0 m/5.9 m;
● 300 kg safe working load (1 person)
● The overall width of the machine is only 0.76m, suitable for working in narrow areas;
● 1.2m x 0.7m large working platform;
● Only occupying an area of 1.35mx0.76m; t
● Heavy-duty universal casters;
● 25% climbing ability;
● Non-marking tires;
● 24VDC power battery for longer battery life;
● Automatic charging function;
● Ground and platform power display;
● Maintenance-free battery;
● Rising and falling, driving sound and light warning;
● The guardrail can be folded for easy transportation and storage;
● Adopting the Curtis driving system from the United States, it is stable and easy to drive;
● Easy to operate thumb handle with multiple mode options
● Suitable for indoor decoration, installation, and maintenance work scenarios;
Optional Options:
● Equipped with manual emergency descent function;
● Emergency switches are equipped on the ground and platform;
● Display of control system fault codes;
● The platform door automatically closes;
Safety:
● Compliant with ANSI and OSHA. Equipped with the CE mark and complying with applicable European regulations, including the Machinery Directive using the EN280 design standard.
